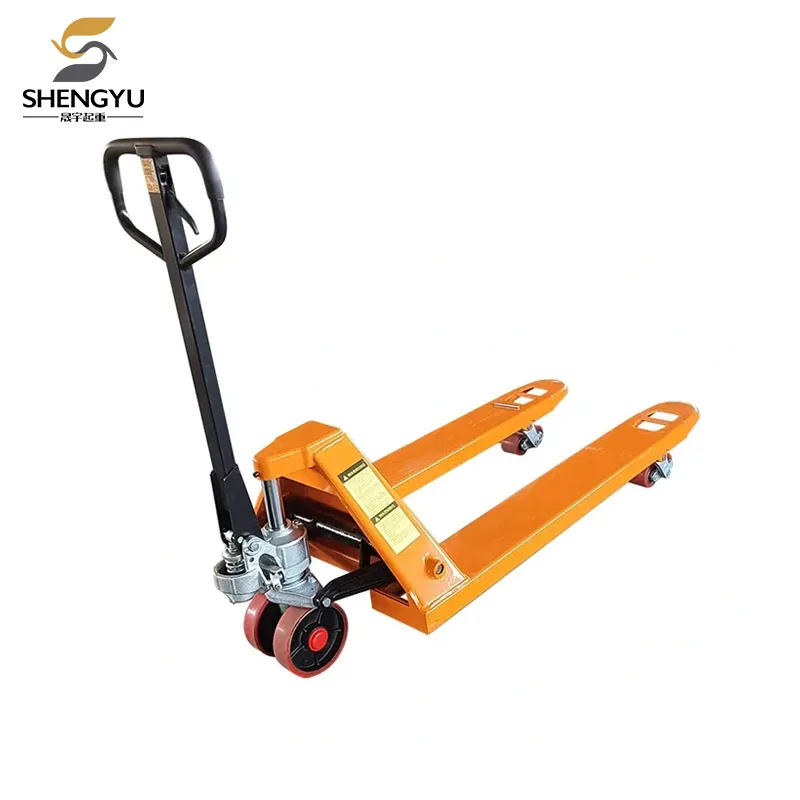

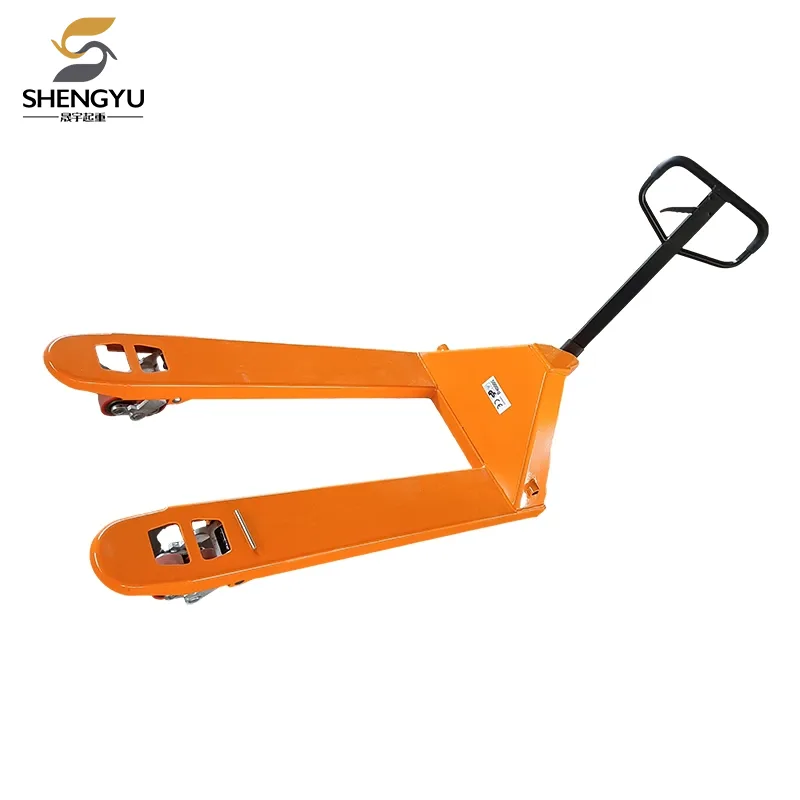

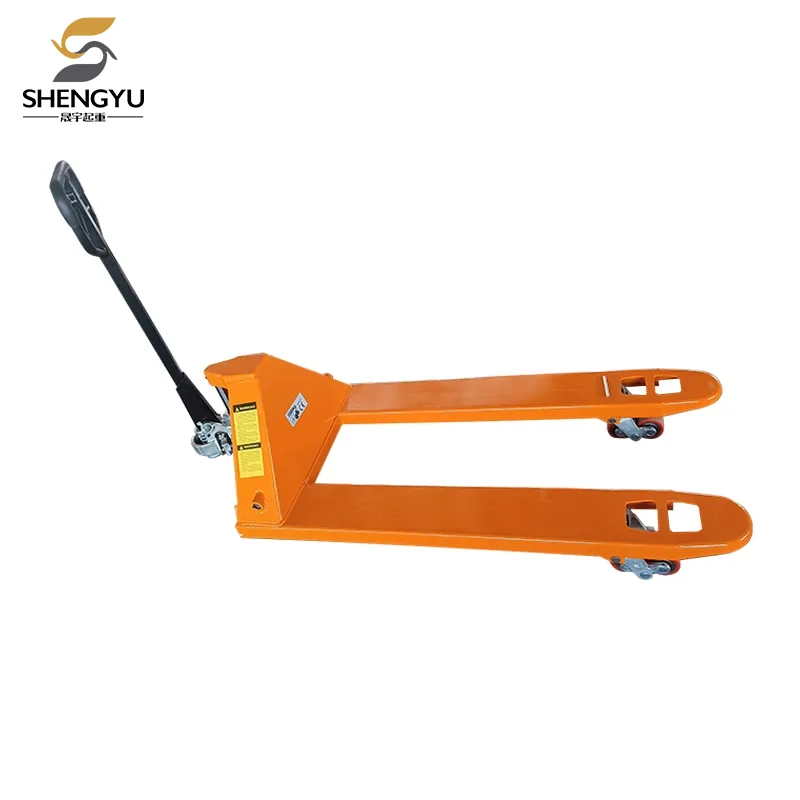

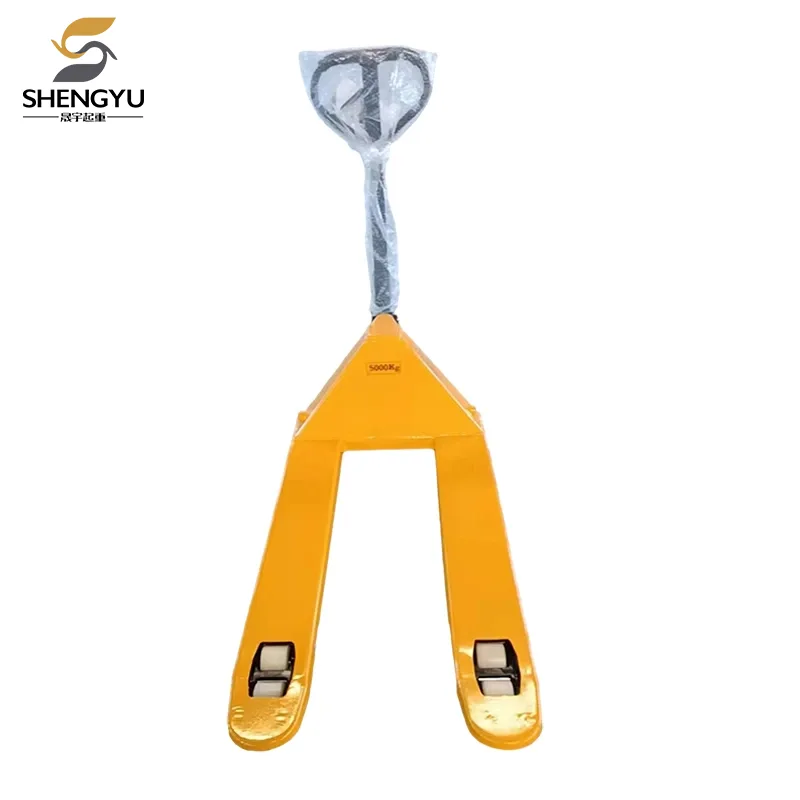

5T Hydraulic Hand Pallet Truck

SY is a large-scale 5T Hydraulic Hand Pallet Truck manufacturer and supplier in China.We have been specialized in Cargo handling equipment for many years.As a factory,the price advantage, OEM&ODM capability,strict quality control system and good sales-after service bring us so many clients all over the world.We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

SY Hydraulic Hand Pallet Trucks are the cost-effective equipment for many short distance transport tasks. Widely used in supermarkets,warehouses, factories,logistics industries etc. We have the right model to meet all your needs.

The rated load capacity of 5T Hydraulic Hand Pallet Trucks is 5ton(5000kg).

Product features:

* Rubber coated handle

* Simple three-speed control handle

* Integrated casting pump,return oil device and safety relief valve.

* Highly balanced reinforced frame

* Controllable descent speed,slow descent

* Optional wheels:nylon wheel,polyurethane(PU) wheel,steel wheel

* Special requirements can be negotiated and met

* 5000 lifts without deformation under rated load

SY 5T Hydraulic Hand Pallet Truck Parameter (Specification)

Model	SY-2T	SY-2.5T	SY-3T	SY-5T
Rated Load (kg)	2000	2500	3000	5000
Min. Height (mm)	85	85	85	90
Max. Lifting Height (mm)	200	200	200	200
Steering Wheels (mm)	180*50	180*50	180*50	180*50
Fork Wheels (mm)	80*70	80*70	80*70	80*68
Overall Height (mm)	1220	1220	1220	1240
Overall Length (mm)	1560	1560	1560	1600
Nominal Length (mm)	1200	1200	1200	1200
Nominal Width (mm)	550/685	550/685	550/685	685
Fork Size W*H	160/55	160/65	160/65	180/65
Wheels Material	Nylon/PU	Nylon/PU	Nylon/PU	Nylon/PU
