Balance Crane Fork

Shengyu is a professional manufacturer of lifting machinery. The DOHO® balance crane fork produced by us play an irreplaceable role in numerous industries by virtue of their superior performance, becoming an indispensable part of modern industrial production and logistics management.

Send Inquiry

Product Description

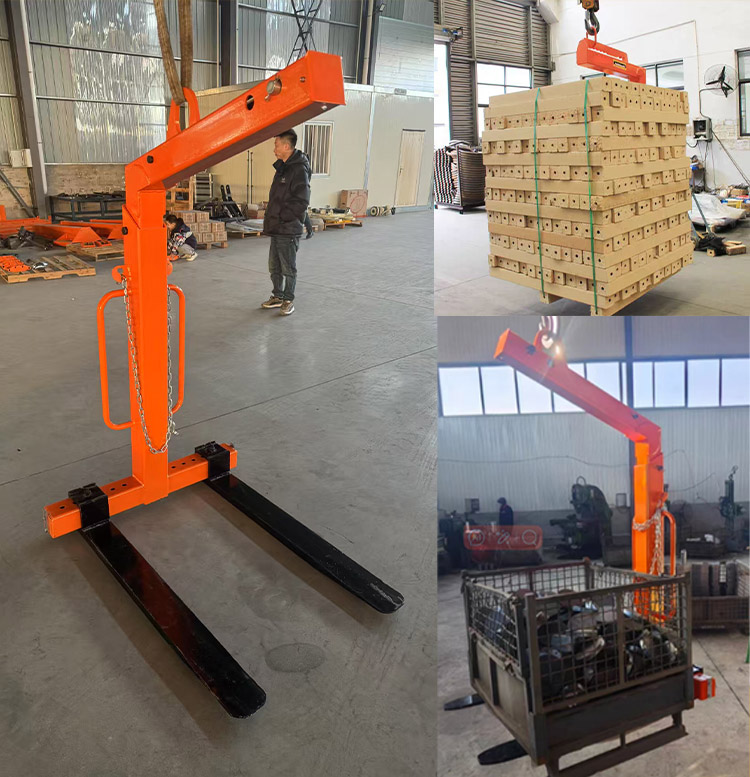

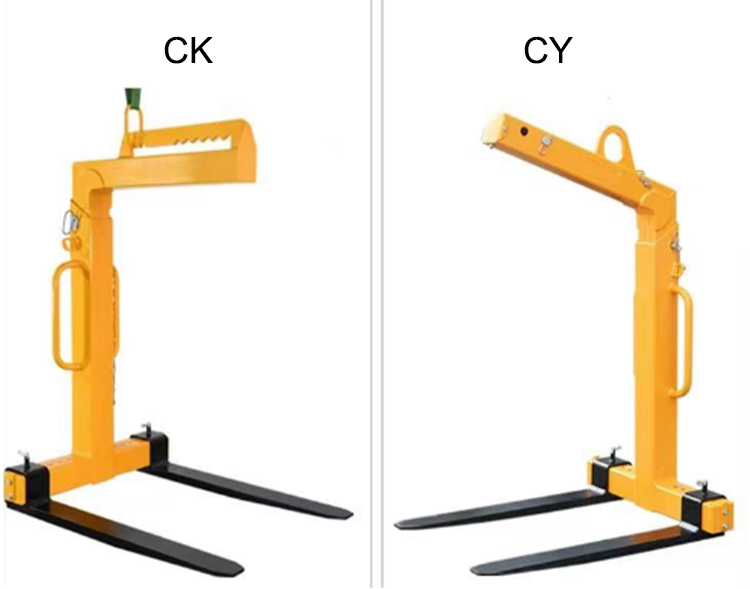

The balance crane fork is a kind of lifting equipment that can be safely suspended on the hook of the overhead crane and is used to lift pallet equipment in workplaces where forklifts cannot reach. It has two types, namely the CK series and the CY series.

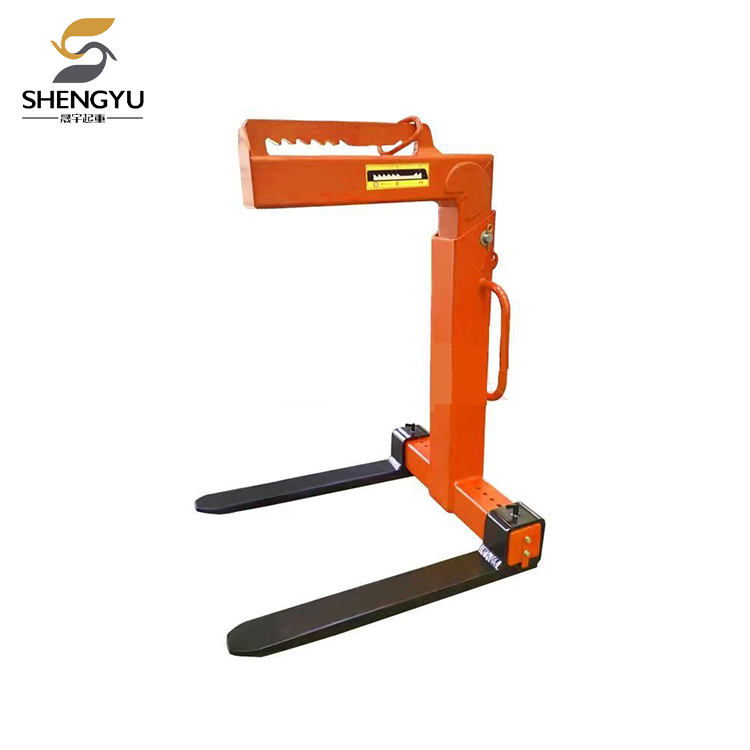

The CK series is manually balanced. According to the different weights of the goods, adjust the position of the saw teeth where the lifting ring is clamped.

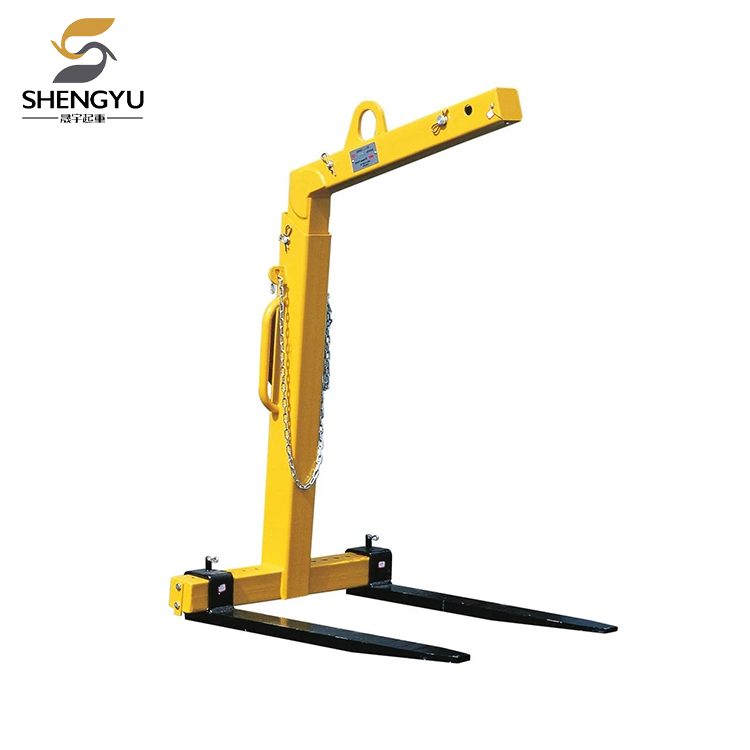

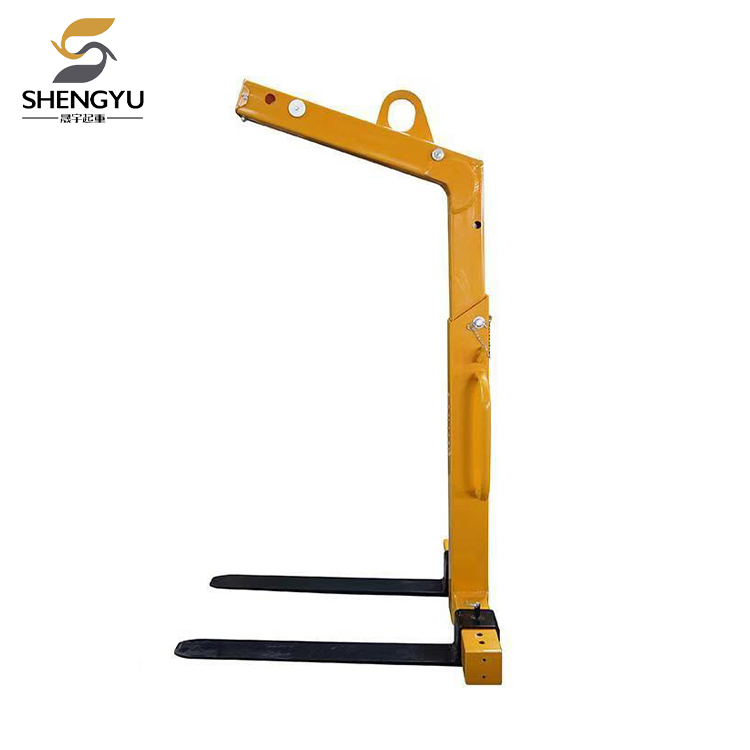

The CY series features automatic balancing. The boom is equipped with an internal gas spring, which can automatically rise and fall and adjust the balance according to different loads, making it convenient and labor-saving.

Balance Crane Fork

Parameters

Model	Load Capacity（kg）	Width (Min/Max)	Fork Length	Fork Cross	Hook Height	Effective Height	N.W
CY10	1000	320-900mm	1000mm	100*30mm	1100-1600mm	1420-1920mm	112kg
CY20	2000	380-900mm	1000mm	120*40mm	1655-2355mm	1300-2000mm	170kg
CY30	3000	400-900mm	1000mm	120*50mm	1700-2420mm	1300-2000mm	210kg
CY50	5000	480-1000mm	1000mm	150*60mm	1710-2410mm	1300-2000mm	285kg
CK10	1000	350-900mm	1000mm	100*30mm	1390-1890mm	1100-1600mm	126kg
CK20	2000	400-900mm	1000mm	120*40mm	1640-2340mm	1300-2000mm	180kg
CK30	3000	450-900mm	1000mm	120*50mm	1670-2370mm	1300-2000mm	225kg
CK50	5000	530-1000mm	1000mm	150*60mm	1700-2400mm	1300-2000mm	300kg

Features

Thickened steel: The balance crane fork is made of high-strength and high-quality steel as the core material.Through professional reinforcement and thickening processes, their structural strength is significantly enhanced. Even when subjected to the rated load for a long time, it can still not deform and is safer to use

Adjustable fork width: The balance crane fork use fixing bolts inserted into corresponding holes to adjust the fork width.This feature makes the crane fork highly suitable for lifting loads of various sizes and shapes. In addition, the length of the fork can be customized.

Adjustable column height: The columns of the balance crane forks are connected by fixed bolts, and the height of the columns can be adjusted according to the height of the goods. The adjustment is simple and convenient. This function significantly enhances the scene adaptability of daily lifting operations.It also significantly enhances the operational flexibility of daily lifting operations.And the function is capable of handling the lifting of goods of different specifications.This makes industrial production and logistics handling more mobile and practical.

Reinforced chain: Thickened galvanized chains are adopted to prevent corrosion and rust, ensuring that the goods are firmly fixed.
