Hydraulic Jack

Hydraulic jack is a good quality product, widely used in all kinds of cars,mines, docks,bridge, construction project. Hydraulic jack can be directly on pressure vessel, hose, etc. for pressure test, equipped with special tools for weight, bending and straightening, compressional and shear, lifting. Tensile, tear open outfit, punching,building reinforcement extrusion,engineering machinery and other operations.

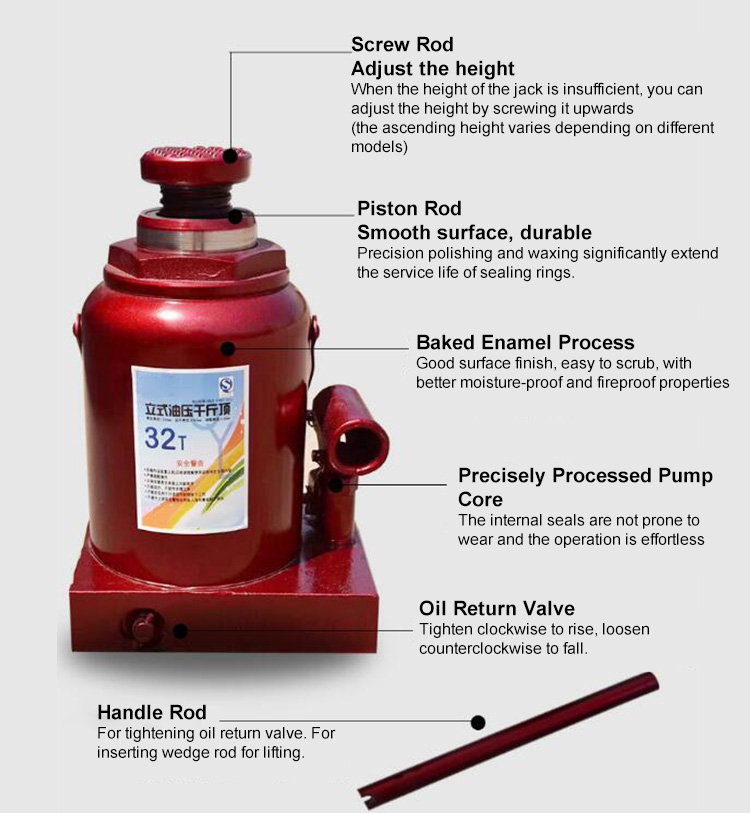

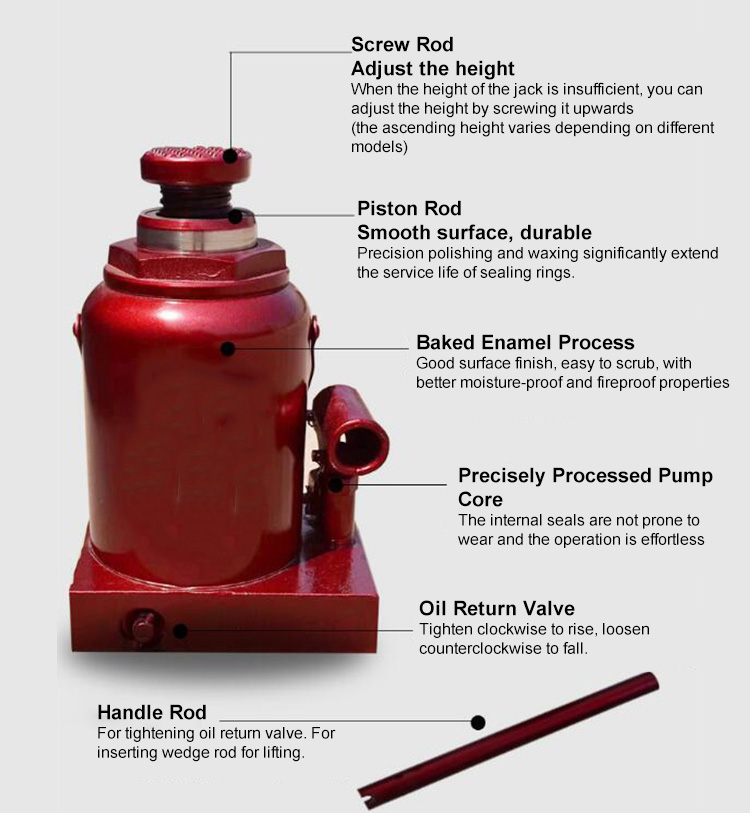

Product Advantages:

High-quality screw, flexible height adjustment, convenient and fast, strong pressure resistance and not easy to corrode

Hydraulic jack equipped with professional sealing parts, it ensures good sealing and no oil leakage

The piston rod is precisely polished and waxed, with a smooth and durable surface, which increases the service life of the sealing ring

The pump core has been precisely processed, and the internal seals are not prone to wear, making the operation easy.

Product Parameters

Applicable Scope:

Widely used for flow of lifting operation, such as railway vehicles to replace the bearings, steel structure installation support, hull keel assembly of heavy-duty machinery, automobile dismantling round pieces of lifting can be with hydraulic jack is safe and reliable to reach up to, especially used for automobile and tractor with Turner with more appropriate.

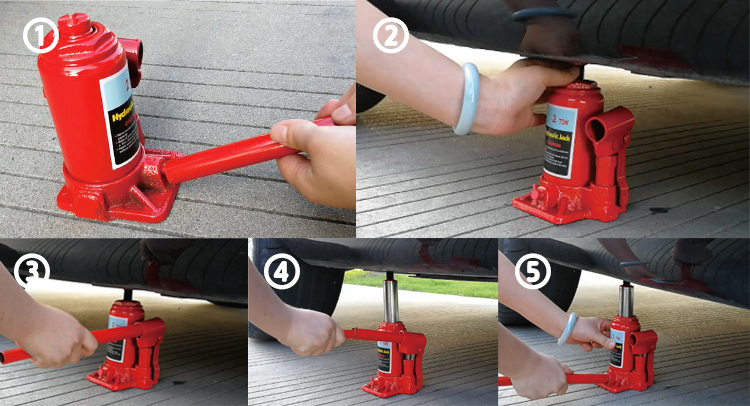

Operation Steps

①Insert the grooved end of the pressure rod into the return oil valve and tighten it clockwise.

②Adjust the height of the screw according to the height of the vehicle body or object.

③Insert the jack handle into the handle sleeve, making sure it is inserted at the top.

④Pull the handle up and down to smoothly lift it to the ideal height.

⑤After completing the operation, loosen the return oil valve counterclockwise by 1 to 2 turns and turn it slowly. Do not loosen the return oil valve too much, otherwise it will cause oil leakage from the hydraulic jack.
