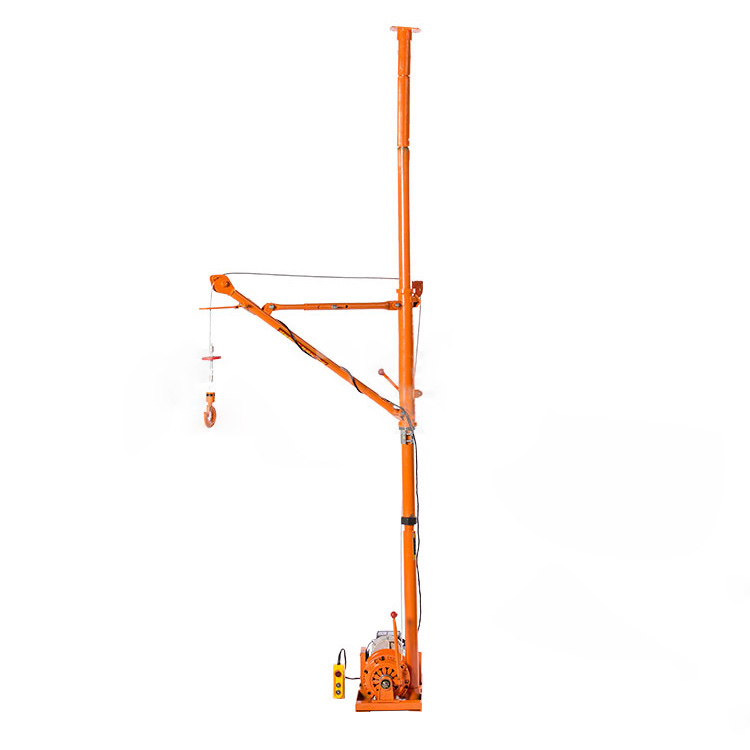

Indoor Single Column Electric Mini Crane
ShengYu Hoisting is one of the professional lifting and Hoisting equipment manufactures in China, we can provide indoor single column electric mini crane to meet your needs of indoor lifting applications and solutions.
Send Inquiry
Product Description
Indoor single column electric mini crane, as a kind of lifting equipment,It can be installed indoors,and lifting materials from outdoor to indoor by windows.with its unique structure and efficient operation performance, is widely used in house, factory, warehouse and other occasions.
Indoor single column electric mini crane adopts the design of single column, so it has the characteristics of small floor area, flexible operation and easy maintenance. At the same time, indoor single column electric mini crane is equipped with electric hoist, wire rope, walking mechanism and electrical control system and other key components to ensure its normal operation and safety.
Product parameter
|
Model |
IS-300kg |
IS- 400kg |
IS- 500kg |
IS- 400kg (High power) |
IS- 500kg (High power) |
|
Rated Load (kg) |
300 |
400 |
500 |
400 |
500 |
|
Rated Voltage (v) |
220 |
220 |
220 |
220 |
220 |
|
Rated Power (kw) |
1.5 |
1.8 |
2.2 |
3.0 |
4.0 |
|
Rated Frequency (hz) |
50 |
50 |
50 |
50 |
50 |
|
Wire Rope Length (m) |
30-60 |
30-60 |
30-60 |
30-100 |
30-100 |
|
Wire Rope Dia.(mm) |
6 | 6 | 6 | 6 | 6 |
|
Indoor Mounting Height (m) |
2.6-3.2 |
2.6-3.2 |
2.6-3.2 |
2.6-3.2 |
2.6-3.2 |
|
Lifting arm out the Window (m) |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
|
Lifting Speed (m/min) |
15 |
15 |
15 |
15/24 |
15/24 |
|
Net Weight (kg) |
65 |
68 | 80 | 73 | 85 |
|
Gross Weight (kg) |
70 |
73 | 87 |
78 |
92 |
Advantages of the Indoor Single Column Electric Mini Crane
● Pure copper motor: Strong power, power off that is the brake
● Seamless steel tube: Thickened column steel tube, more stable body
● Retractable screw: Adjustable height for indoor installation.
● Punch-free top hat: No need to punch holes in the ceiling to install the roof.
● Pressure double bearings: Reinforced ball double bearings for heavy load bearing.
● Anti-rotation wire rope: Multi-strand solid core winding, not easy to break
● Forged G80 hook: Alloy manganese steel one-piece moulding, not easy to be deformed.
Product Application
Indoor single column electric mini crane consists of a single column frame and 220V clutch winch motor. Used for lifting daily supplies in the house,lifting decorative materials by decoration company,lifting material for building.Lifting furniture from downstairs to upstairs by moving company,etc.
Product Details
If you are looking for efficient, safe and reliable lifting equipment, we highly recommend you choose ShengYu indoor single column electric mini cranes. It not only has the characteristics of efficient and intelligent, but also can be customized according to your needs to meet the needs of various occasions.
