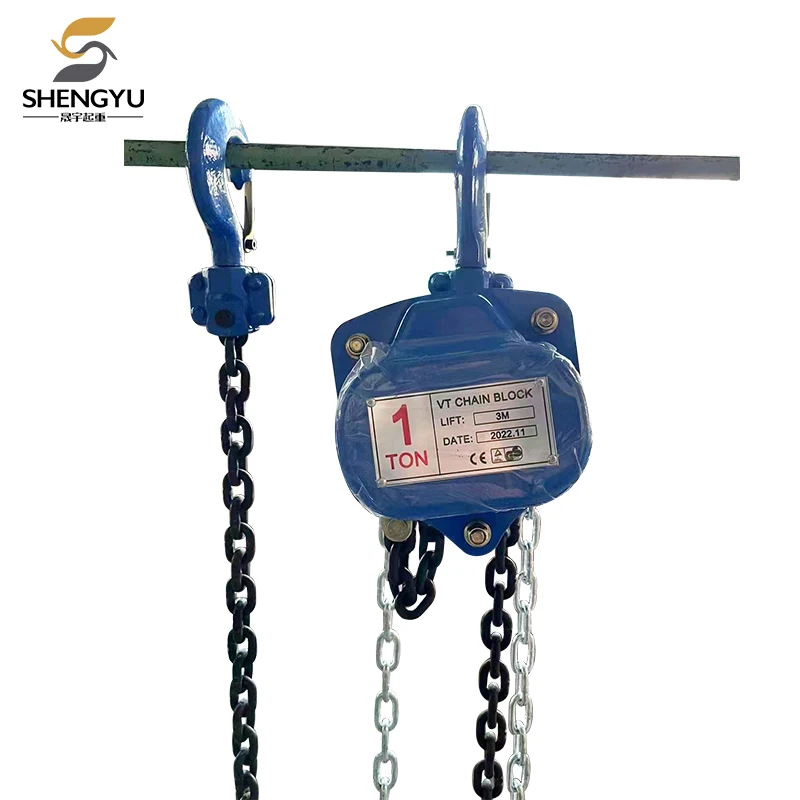

VT Type Chain Hoist
With years of experience in production Chain Hoist, SY can supply a wide range of VT Type Chain Hoist. High quality Chain Hoist can meet many applications, if you need, please get our online timely service about Chain Hoist. In addition to the product list below, you can also customize your own unique Chain Hoist according to your specific needs.
Send Inquiry
Product Description
SY VT type chain hoist is a widely used manual hoisting machinery which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the warehouse, especially suitable to be used in the open air and the place without power source.
SY VT type chain hoist compliance with national standard, use the symmetry arrayed two-stage gear driven structure. It is design reasonable, dainty material, advanced structure, beautiful appearance, small volume, light weight, big component strength, high toughness, safety and durability.
Features:
* Compact structure. Light weight and durable life.
* High mechanical efficiency and small pulling effort at full load.
* Reliable, safe in operation and low maintenance.
* Very low headroom allow optimal use of available space
* Bearing mechanism to increase mechanical efficiency.
* Gear cover with good rigidity,high strength,good impact resistance ability,can effectively protect the internal components.
SY VT Type Chain Hoist Parameter
|
Model |
VT-0.5 |
VT-1 |
VT-1.5 |
VT-2 |
VT-3 |
VT-5 |
VT-10 |
VT-20 |
|
|
Capacity(T) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
20 |
|
|
Standard lift(M) |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
|
|
Running test load(T) |
0.75 |
1.5 |
2.25 |
3 |
4.5 |
6.25 |
12.5 |
25 |
|
|
Headroom(drawn close up)H(MM) |
240 |
240 |
347 |
380 |
470 |
600 |
700 |
1000 |
|
|
Load chain |
Columns |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
8 |
|
Dia(mm) |
6 |
6 |
8 |
6 |
8 |
10 |
10 |
10 |
|
|
Effort required to lift max load(N) |
221 |
304 |
343 |
314 |
343 |
381 |
392 |
392 |
|
|
|
A |
120 |
142 |
178 |
142 |
178 |
210 |
358 |
580 |
|
B |
108 |
122 |
139 |
122 |
139 |
162 |
162 |
189 |
|
|
C |
24 |
28 |
34 |
34 |
38 |
48 |
64 |
82 |
|
|
D |
123 |
145 |
181 |
145 |
181 |
213 |
213 |
213 |
|
|
Extra weight per meter of extra lift(KG) |
1.7 |
1.7 |
2.3 |
2.5 |
3.7 |
5.3 |
9.7 |
19.4 |
|
