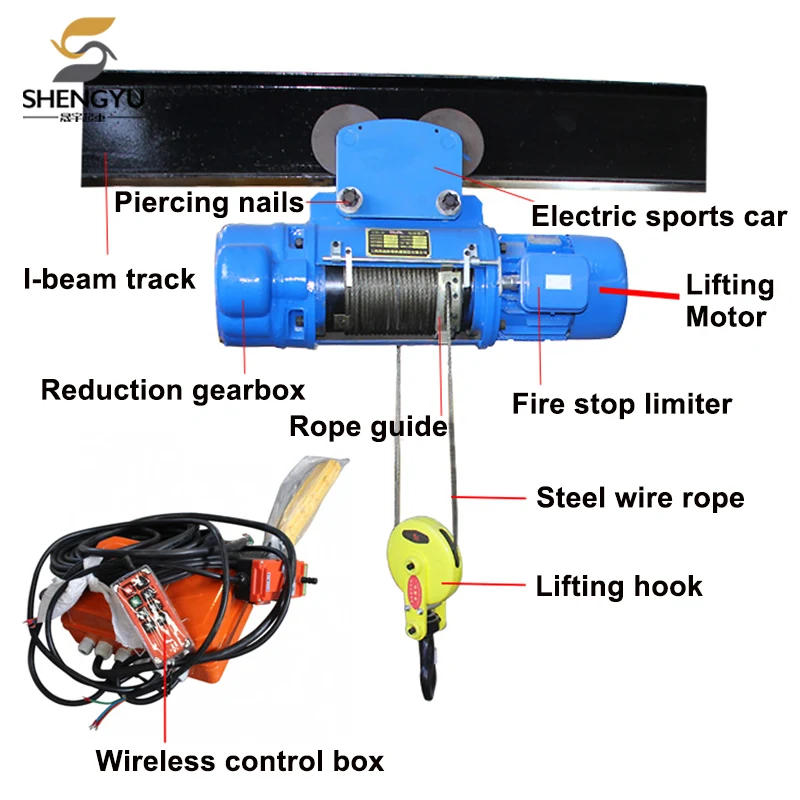

CD1 Type Electric Wire Rope Hoist

SY is a large-scale Electric Wire Rope Hoist manufacturer and supplier in China.We have been specialized in hoisting machinery for many years.As a factory,the price advantage, OEM&ODM capability,strict quality control system and good sales-after service bring us so many clients all over the world.We look forward to becoming your long-term partner in China.

Product features:

* Model CD1 Electric Wire Rope Hoist is a small sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes.

* With slight modification, it can also be used as a winch.

* It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

* CD1 Type Electric Hoist has only normal speed, which can satisfy normal application.

* MD1 Type Electric Hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading the material for sand mould casting, maintenance of machine tools, etc.

Note:

A. The standard lifting height is 6,9,12,18,24,30 and 36 meters.

B. The lifting speed can be single speed or two speed, even multi-speed with frequency inverters.

C. The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available.

D. The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.

E. The normal traveling speed is 20m/min, and 12.5,16,25,32m/min by request

F. The normal rail gauge of the double-girder hoist is 1200, 1500,1800,2100 and 2300mm. The normal traveling speed of this kind of hoist is 20m/min,and 30, 45m/min by request.

SY CD1 Type Electric Wire Rope Hoist Parameter
