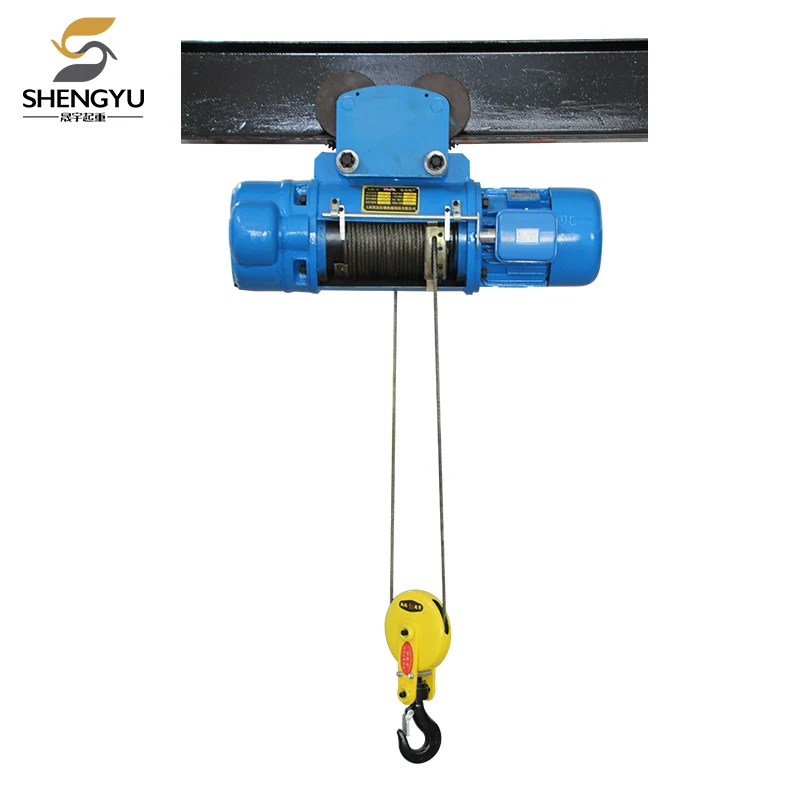

MD1 Type Electric Wire Rope Hoist
SY is a large-scale MD1 Type Electric Wire Rope Hoist manufacturer and supplier in China.We have been specialized in hoisting machinery for many years.As a factory,the price advantage, OEM&ODM capability,strict quality control system and good sales-after service bring us so many clients all over the world.We look forward to becoming your long-term partner in China.
Send Inquiry
Product Description
SY is a large-scale Electric Wire Rope Hoist manufacturer and supplier in China.We have been specialized in hoisting machinery for many years.As a factory,the price advantage, OEM&ODM capability,strict quality control system and good sales-after service bring us so many clients all over the world.We look forward to becoming your long-term partner in China.
Product features:
* Model MD1 Electric Wire Rope Hoist is a small sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes.
* With slight modification, it can also be used as a winch.
* It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
* MD1 Type Electric Hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading the material for sand mould casting, maintenance of machine tools, etc.
Note:
A. The standard lifting height is 6,9,12,18,24,30 and 36 meters.
B. The lifting speed can be single speed or two speed, even multi-speed with frequency inverters.
C. The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available.
D. The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.
E. The normal traveling speed is 20m/min, and 12.5,16,25,32m/min by request
F. The normal rail gauge of the double-girder hoist is 1200, 1500,1800,2100 and 2300mm. The normal traveling speed of this kind of hoist is 20m/min,and 30, 45m/min by request.
SY MD1 Type Electric Wire Rope Hoist Parameter
|
MD1 Electric Wire Rope Hoist |
||||||||
|
Model |
MD1 -1T |
MD1 -2T |
MD1 -3T |
MD1 -5T |
MD1 -10T |
MD1 -16T |
MD1 -20T |
|
|
Capacity t |
0.5 |
1 |
2 |
3 |
5 |
10 |
16 |
20 |
|
Standard lifting height m |
6--12 |
6--30 |
6--30 |
6--30 |
6--30 |
9--30 |
9--18 |
9--18 |
|
Lifting speed m/min |
8(0.8) |
8(0.8) |
8(0.8) |
8(0.8) |
7(0.7) |
3.5(0.35) |
3.5(0.35) |
|
|
Running Speed m/min |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
Wire rope type |
D-6*37+1 |
D-6*37+1 |
D-6*37+1 |
D-6*37+1 |
D-6*37+1 |
D-6*37+1 |
6*37+1 |
6*37+1 |
|
I-beam type |
16-28b |
16-28b |
20a-32c |
20a-32c |
25a-63c |
25a-63c |
45a-63c |
50a-63c |
|
Loop track Min radius m |
1.5 |
1.5-4 |
2--4 |
2--4 |
2.5-5 |
2.5-9 |
3-4.6 |
3-4.6 |
|
Power supply |
220V-440V, 3phase, 50-60HZ |
|||||||
|
Working duty |
Mid M3 |
Mid M3 |
Mid M3 |
Mid M3 |
Mid M3 |
Mid M3 |
Mid M2 |
Mid M2 |
